Basic Info.
Model NO.
BC68006
Group
All People
Quality Certification
ISO13485/FDA/CE
Rated Current
≤ 0.7A(When Load)
Rated Power
≤ 80W(When Load)
Warranty
2 Years
Power Supply Mode
AC / Plug in
Color
White
Instrument Classification
Class II
Mmad
4.0
Averange Nebulization Rate
Above 0.4ml/Min
Power Consumption
65W
Noise Level
Below 60dba
Medication Capacity
6ml
Miq
500PCS
Size
64*26mm
Fans
Small/Middle/ Big
Transport Package
Palletized
Specification
26mm compressor nebulizer
Trademark
FOFO
Origin
China
HS Code
901920000
Production Capacity
10000000PCS/Month
Product Description
Nebulizer Compressor
nebulizer compressor motor piston nebulizer compressor
Nebulizer is a drug delivery device used to medication in the form of a mist inhaled into the lungs .
They can be used for medical treatment of the upper and lower respiratory tracts .
High/durable compressor :
running 2000 hours .Maximum pressure about 40 psi and 6 ~ 7 liters per minute
26 /30mmstamping with rising tempreture about 180 c.
1: Input:220V/50HZ 120V/60HZ
2: Power Consumption: 180VA
3: Medication Capacity: 6ml
4: Particle Size: Respirable Fraction 0.5 to 5μm 0.5μm80%
5: MMAD: 2.0μm
6: Average Nebulization Rate: Above 0.2ml/min.
7: Noise Level: Below 60 dBA
8: Compressor Pressure Range: 30-45 Psi
9: Operation Pressure Range: 12-14.5 Psi(0.85-1.1 bar)
10: Liter Flow Range: 8~ 10 lpm
11:Operation Temperature Range: 10°C--40°C (50°F--104°F)
12:Operation Humidity Range: 10 to 95% RH
13:Storage Temperature Range:-10°C--65°C
14:Storage Humidity Range: 10 to 95%RH

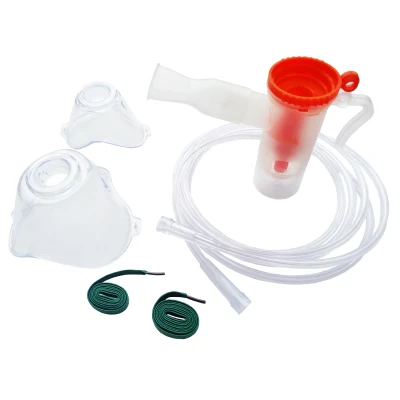

Nebulizer Compressor Kits
One set nebulizer kits includes:
-1pc adult mask, 1 child mask
- 1pc mouth piece
- 5 filters
- 1 pc 1.2M tube
We are manufacture produce high quality medical air mattress for anti-bedsore , Compressor Nebulizer ,
Suction machines , air compression therapy for DVT .
Branding orders for over 40 countries include Europe , Japan , USA ...
We have ISO , FDA, and CE .
Welcome contact us for more information .
nebulizer compressor motor piston nebulizer compressor
Nebulizer is a drug delivery device used to medication in the form of a mist inhaled into the lungs .
They can be used for medical treatment of the upper and lower respiratory tracts .
High/durable compressor :
running 2000 hours .Maximum pressure about 40 psi and 6 ~ 7 liters per minute
26 /30mmstamping with rising tempreture about 180 c.
1: Input:220V/50HZ 120V/60HZ
2: Power Consumption: 180VA
3: Medication Capacity: 6ml
4: Particle Size: Respirable Fraction 0.5 to 5μm 0.5μm80%
5: MMAD: 2.0μm
6: Average Nebulization Rate: Above 0.2ml/min.
7: Noise Level: Below 60 dBA
8: Compressor Pressure Range: 30-45 Psi
9: Operation Pressure Range: 12-14.5 Psi(0.85-1.1 bar)
10: Liter Flow Range: 8~ 10 lpm
11:Operation Temperature Range: 10°C--40°C (50°F--104°F)
12:Operation Humidity Range: 10 to 95% RH
13:Storage Temperature Range:-10°C--65°C
14:Storage Humidity Range: 10 to 95%RH
Nebulizer Compressor Kits
One set nebulizer kits includes:
-1pc adult mask, 1 child mask
- 1pc mouth piece
- 5 filters
- 1 pc 1.2M tube
| COMPRESSOR NEBULIZER BC68003 | |
| Input | AC 120V/60Hz |
| Extreme pressure: | >205 kpa |
| Power consumption | ≤200VA |
| Medication capacity | 6ml |
| Particle size | ≤5 μm & 60% |
| MMAD | 2.0 μm. |
| Average nebulization rate | ≥0.2 mL/min |
| Noise Level | ≤60 dB |
| Compressor Pressure Range | 30-58 psi |
| Operating Pressure Range | 7-10 psi |
| Liter Flow Range | 6-10 LPM |
| Operation mode | 20 minutes on, 40 minutes off |
| Operation Temperature Range | 10ºC to 40ºC(50ºF to 104ºF) |
| Operation Humidity Range | 30 to 75% RH |
We are manufacture produce high quality medical air mattress for anti-bedsore , Compressor Nebulizer ,
Suction machines , air compression therapy for DVT .
Branding orders for over 40 countries include Europe , Japan , USA ...
We have ISO , FDA, and CE .
Welcome contact us for more information .
